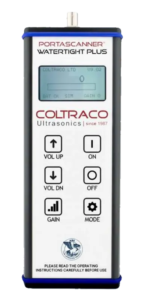

Portascanner® Watertight PLUS

Ultrasonic Watertight Integrity Indicator designed
for watertight structures and hatch covers

Ultrasonic Hatch Cover, Watertight Door and MCT Tester

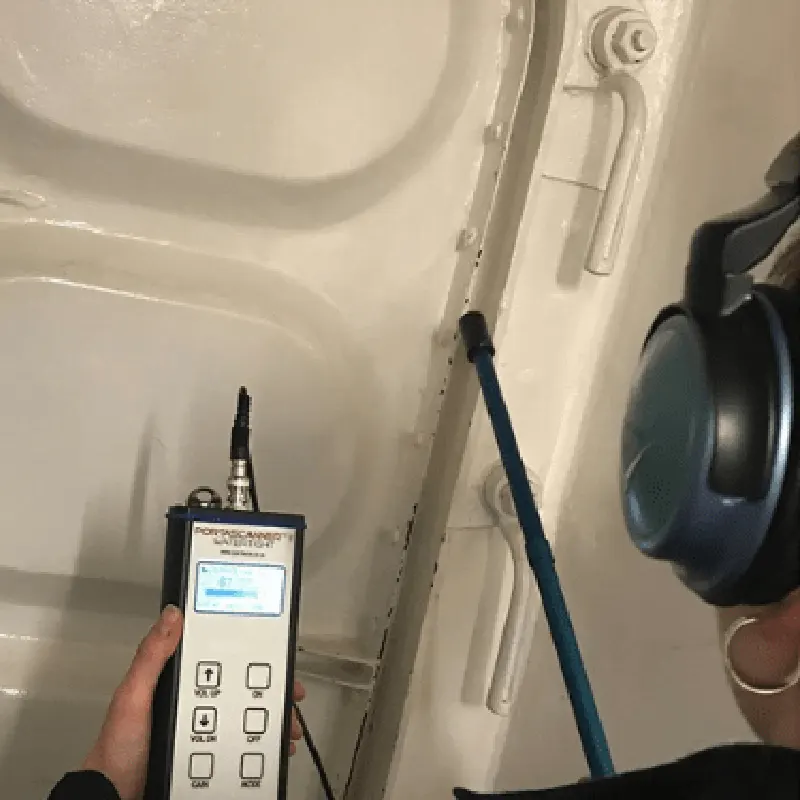

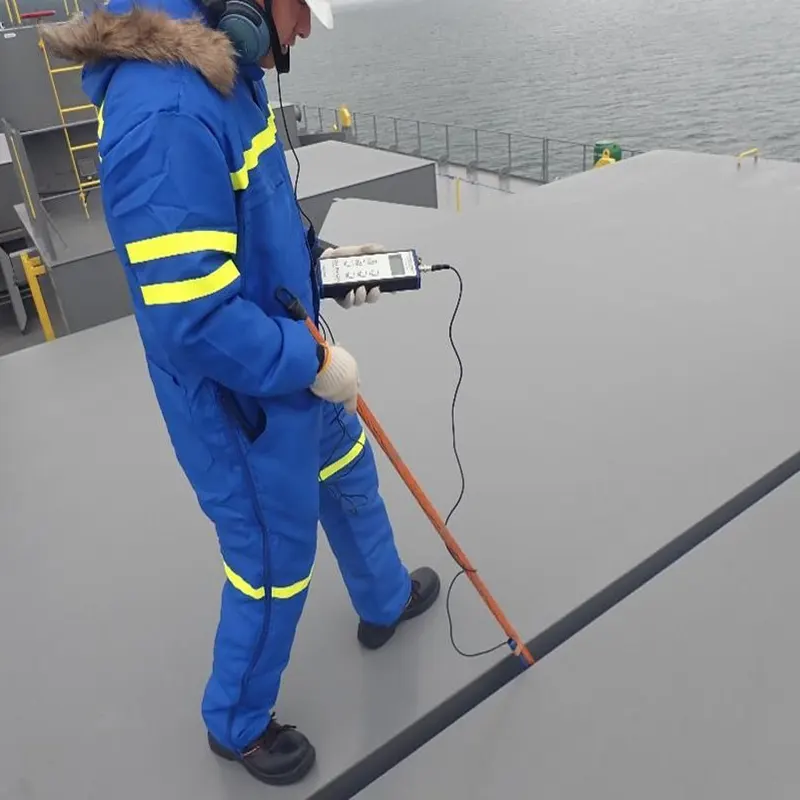

Portascanner® WATERTIGHT PLUS is a handheld watertight integrity tester for inspecting the watertightness and weathertightness of hatch covers, watertight doors and multi cable transit seals in marine environments. It is a portable, handheld solution which can be used by a single operator to test a large number of different hatches and seals in one quick and easy inspection.

Technical Specification
Dimensions Main Unit: 229x85x35 mm (L x W x D)

Generator: 147x89x54 mm (L x W x D)

Sensor Wand: 230mm (L) x 35mm (Diameter)
Unit Weight Main Unit: 400g (with batteries)

Generator: 400g (with batteries)
Power Supply Main Unit: 1x PP3 9V

Generator: 2x PP3 9V
Battery Life 10 Hours Continuous Use
Sensor Type 35mm Flexible Sensor Wand
Sensor Connectivity 1.8m BNC Coaxial Cable
Generator Frequency 40KHz
Operating Temperature -20°C to +70°C (-4°F to +158°F)
Display 55 x 28 mm Backlit LCD Display
Minimum Leak Detection 0.06 mm ±0.02mm Leak Diameter
Classifications & Approvals RINA Classification Society Accepted, ABS Type Approved, NSN: 6625-99-257-8336
Registrations UKCA, CE, Coltraco is ISO 9001 and ISO 14001 Compliant
Warranty
  • Main Unit: 3 Years
  • Generator: 3 Years
  • Sensor: 1 Year
  • Technical Support: Lifetime of the unit
