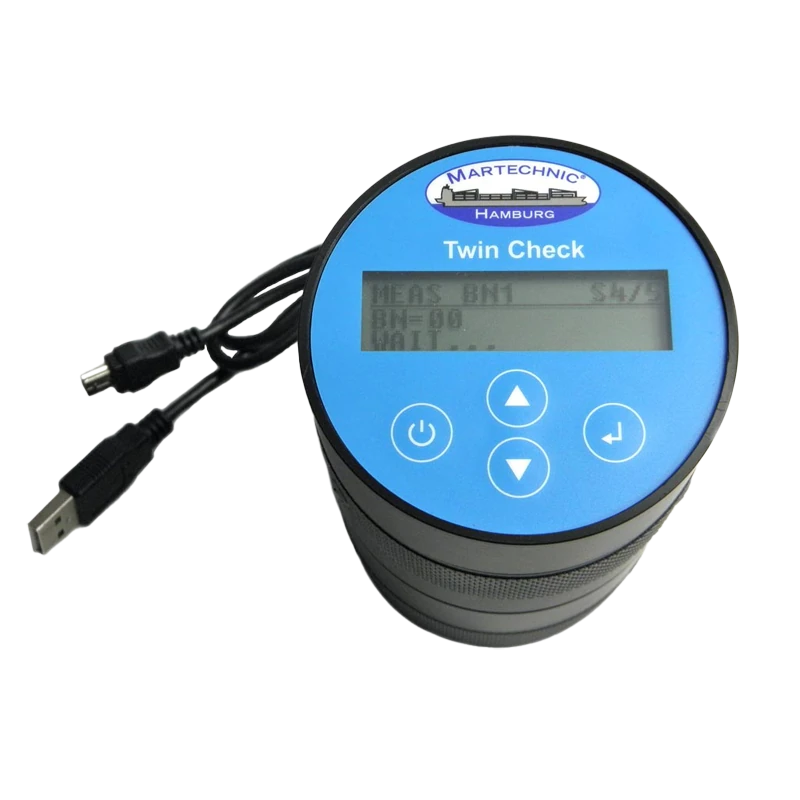

Twin Check 4.0

Digital Water-in-Oil & BN Test

TWIN CHECK: NEW IMPROVED DESIGN IN LINE WITH THE 4.0 CONCEPT

For optimization of measuring processes and easy monitoring of trends in the
condition of lubricating and hydraulic oil, Martechnic® has successfully accomplished
modernization and modification of its proven test device TWIN CHECK following the
concept of digitalization in the area of portable test equipment. A user-friendly TWIN
CHECK 4.0 with a new modular design solution offers several upgraded
configurations

Interchangeable Parts "TWIN CHECK 4.0" — Interchangeable Parts “TWIN CHECK 4.0”

Features

Parameters to measure

Water-in-oil

Measuring range: 0 – 1.0 vol. % H2O
Measuring time: depends on the measured value (min. 2 – max. 20 min.)
Accuracy: +/- 3 %

Base number:

Measuring range: 0 – 150 BN
Measuring time: depends on the measured value (min. 2 – max. 20 min.)
Accuracy: +/- 1BN

Also available as single test unit: Water-in-Oil or BN

Benefits

Applicable for all mineral oil based fluids
Improved design with easy-to-follow navigation menu for high accuracy measurements
Internal memory chip with average data storage capacity of 2.5 years
Digital read-out of test results
USB to serial cable connectivity for data transfer and trend analysis
Water-in-oil measurement: 6 modes for up to 6 various oil grades of different engines
BN determination: 6 modes for up to 6 various oil grades of different engines
Maintenance and repair on board is possible
