Visco Dens Plus

Heated Electronic Falling Ball Oil Viscosity Measuring Device

VISCO DENS PLUS: Falling Ball Oil Viscosity Measuring Device

Regular verification of viscosity of lubricating and hydraulic oils provides necessary reassurance that the performance of the engine system is stable and efficient. At the same time the determination of density enables more accurate measurement of viscosity. Therefore, the VISCO DENS PLUS helps to accurately assess both oil parameters in a single quick test procedure at three different temperatures (40 ˚C, 50 ˚C and 80 ˚C) directly on-site.

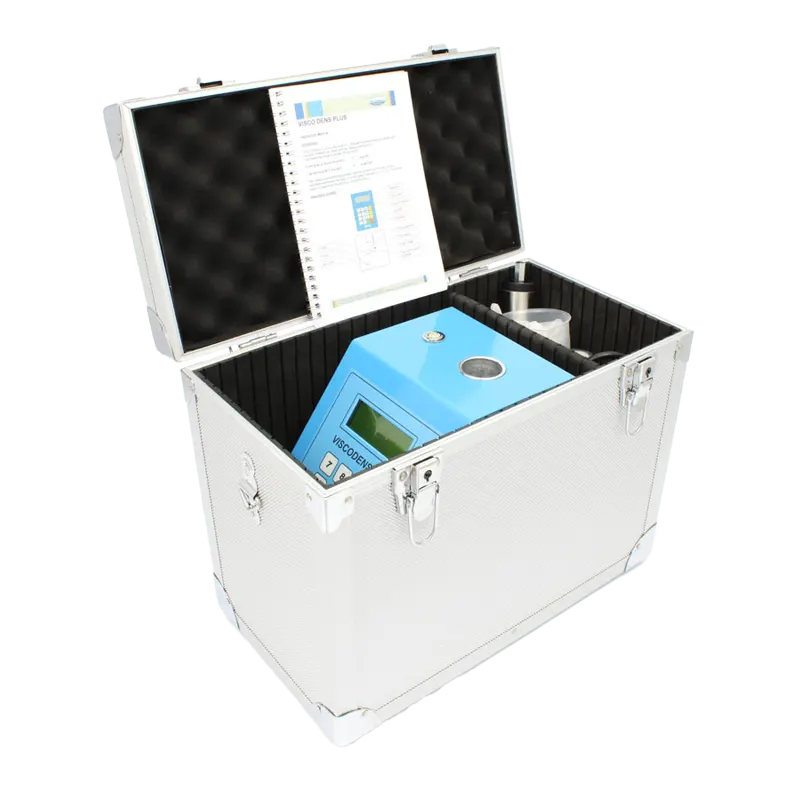

Measuring Device “VISCO DENS PLUS”

  • Measuring range viscosity: 1 – 999 mm²/s
  • Measuring range density: 0.82 – 1.05 g/ml
  • Measuring temperature: 40°C, 50°C, 80°C
  • Measuring time: about 15 min.
  • Oil sample: approx. 200 ml
  • Accuracy: +/- 3 %
