Portable vibration measurement is particularly valuable for smaller shipboard equipment such as fans, electric motors and pumps, which often run continuously and are spread across the vessel. These components are critical for ventilation, cooling, fuel and ballast systems – yet they are rarely monitored permanently and incipient faults can remain unnoticed for long periods.
With a handheld vibration meter, engineers and service technicians can quickly assess the condition of individual machines at defined measuring points, compare readings with baseline values, and identify issues like imbalance, misalignment, bearing wear, or loose foundations at an early stage. This enables targeted maintenance during planned port stays instead of reactive troubleshooting at sea, reduces the risk of secondary damage and helps to extend the lifetime of auxiliary equipment while keeping noise levels, energy consumption and unplanned downtimes under control.
Type 9080 – Intelligent vibration measuring device
Interprets, analyzes and gives trends for machine condition, including bearing wear. Wireless charging.
Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 10™ compatible.
- Store analyse and report on all your vibration parameters in one place; up to 10 assets with 10 readings per asset standard; unlimited assets with 10 readings per asset with optional A9084 VibTrend Pro software.
- All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.
Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BOU).
Identify complex issues: 800-line spectrum with zoom and cursor.
Identify the vibration problem: unbalance, misalignment or looseness in addition to the bearing condition.

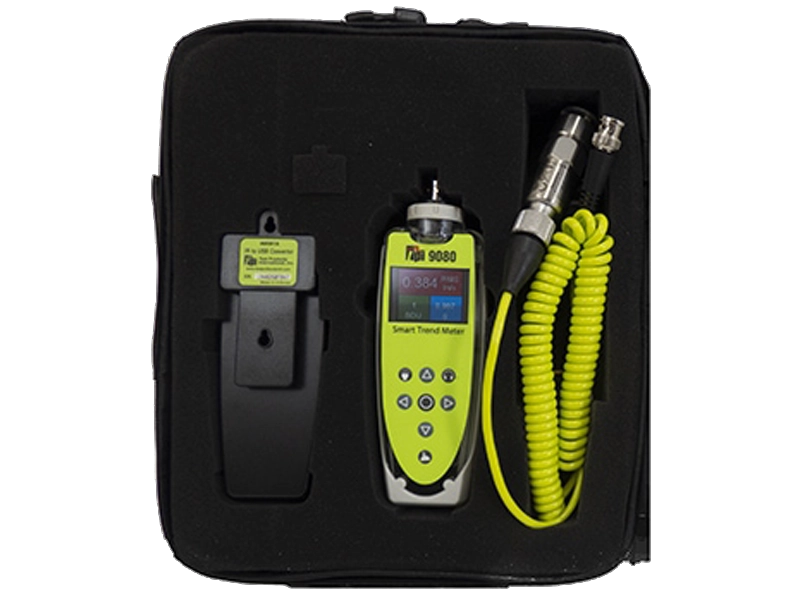

9080 Standard kit

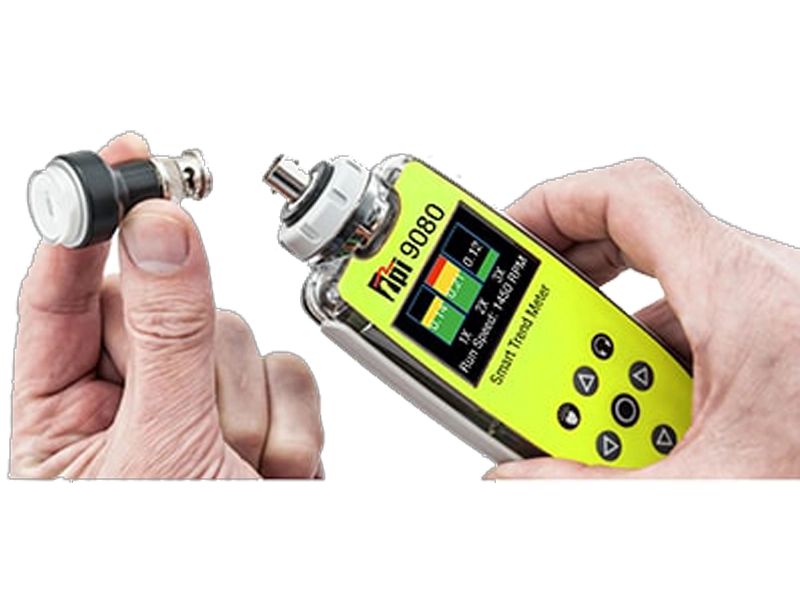

9080 A2 handheld

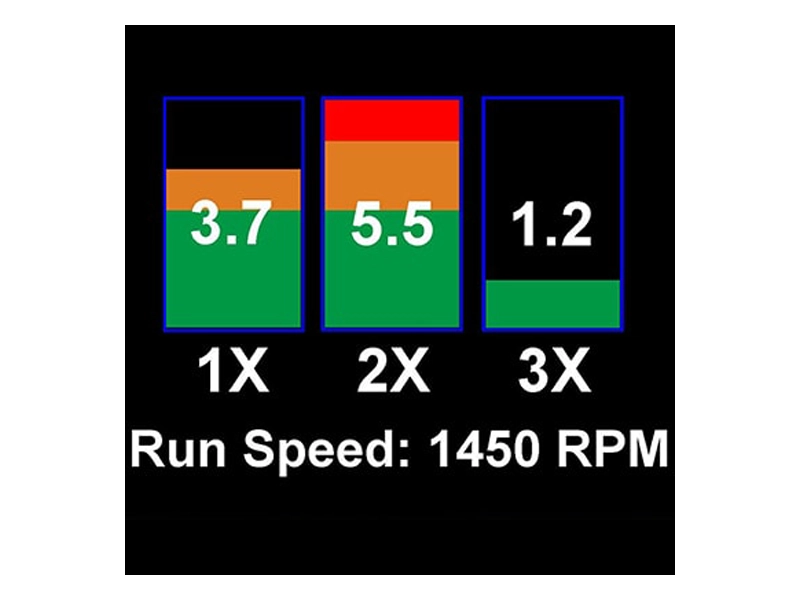

9080 ScreenShot BarGraph mm.s
How it works
General
Features
Product range
WHAT IS VIBRATION DIAGNOSTIC?
Vibration diagnostics is an important part of predictive machinery maintenance programmes.
Over the years, vibration diagnostics has proven to be the most effective method of checking “machine health”.
Vibration diagnostic equipment helps us predict machine failures in a timely manner.
If preventive maintenance is applied and machines are checked regularly, machine failures can be detected early and appropriate measures can be taken.
In this way, you can avoid unexpected machine shutdowns and reduce the need to replace parts that are still in good condition.
We can supply you with a wide range of vibration diagnostic equipment, from simple data collectors to advanced vibration analysers and online monitoring systems. The data from the devices can be transferred to the DDS software for further analysis
HOW DOES IT WORKS?
Running machines generate vibrations that contain a lot of information about the machine’s condition. A vibration meter or analyser measures these vibrations. The sensor must be placed at the correct point on the machine (e.g. bearing housing). The instrument measures the vibration signal and shows you the strength of the vibrations as well as possible machine faults. The most common faults are bearing damage, imbalances, misalignment and loose parts.
WHAT WE CAN OFFER?
The products of the company TPI are designed in such a way that the vibration diagnostics have a suitable solution for all types of customers, depending on their needs and budget. This is the reason why we have also chosen this manufacturer in the field of marine industry. Measurement technology should be easy to use, understandable and offer added value to the customer.
As a designated main distributor for the German market, we can offer you the entire product portfolio, as well as training and service.
We will introduce the individual products one after the other on our homepage. if you have any questions, please do not hesitate to contact us at sales@txmarine.com.
- Find machine faults before they stop your machine
- Increase productivity and lower maintenance costs
- Collect vibration data
- Trend data using VibTrend PC software
- Standard Cable mounted accelerometer with magnet
- USB docking station to download to a PC
- ISO built-in Alarms
- Easily identify bearing problems with BDU (Bearing Damage Unit) Reading
- Easily identify problems with built-in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness) - 800 line FFT (spectrum)
- Wireless charging
- Ruggedized IP67 case
- 3-year Limited Warranty
TXM Smart Vibration Analyzer 9084 Set consisting of:
Housing, charger, cable, accelerometer and cable, docking station and USB cable
Interprets and analyzes machine condition, including bearing wear, and shows trends. Wireless charging.
VibTrend
Powerful, easy to use asset management and fault diagnosis software compatible with Windows 7 and above.
VibTrend software gives you greater ease of use and flexibility.
- Store analyse and report on all your vibration parameters in one place.
- All information is just a click away.
- Color coded alarms highlight problems.
- Trend lines show problems before they happen.
